Superpack LiFePO4 12V 120Ah Off-grid Power With LED Capacity Display

Superpack LiFePO4 12V 120Ah Off-grid Power System With LED Capacity Display

Superpack LiFePO4 12V 120Ah Off-grid Power With LED Capacity Display

Long life deep cycle lithium battery for your RV, camper van, boat, solar, or off-grid application

品牌:
旭派锂能

现在留言

产品分类

您可以通过任何方式联系我们。我们全天候 24/7 通过电子邮件或电话为您服务。

联系我们

最新产品

产品详情

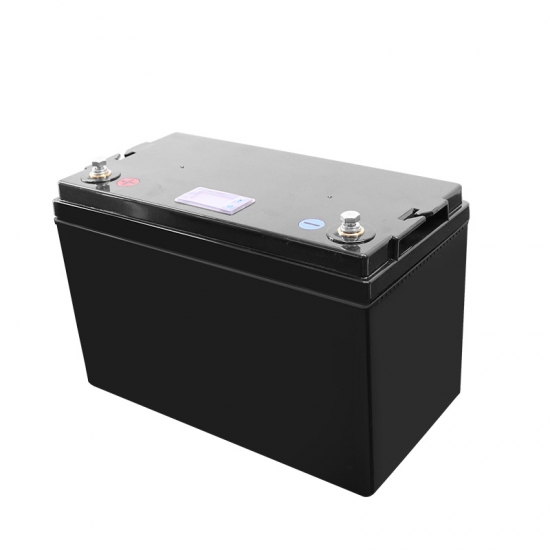

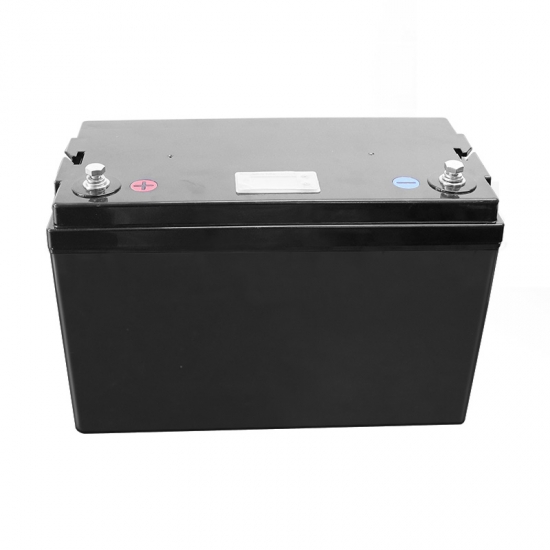

Superpack LiFePO4 12V 120Ah Off-grid Power With LED Capacity Display

Superpack 12V100Ah high performance lithium iron phosphate battery with charge display allows you to see your charge usage at any time. It is a safer, a more lightweight alternative to lead-acid in various marine,RV applications.

Features

Longer life compare to lead acid battery

◆ Up to 60% weight saving

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging

◆High-quality lithium iron phosphate batteries, safe and reliable;

◆ High integrated with Easy installation

◆ Long life cycle, >3000 times at 80% DOD.

◆ Internal BMS with full protection, high voltage protection with higher reliability.

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality

Application

Parameter

Item	General Parameter	Remark
Rated Capacity	120Ah	Standard discharge0.2C after standard charge 0.2C
Minimum Capacity	114Ah	Standard discharge0.2C after standard charge 0.2C
Nominal Voltage	12.8V
Life Expectation	Higher than 80% of the Initial Capacity of the battery	1）Charge:CC@0.2C to 14.6V, then CV till current to 0.05C 2）Rest: 30min. 3）Discharge: 0.2C to 10V Temperature:20±5℃ Carry out 2000cycles
Discharge cut-off voltage	2.0V/Cell(≥8.0V)	10V (recommended)
Charge cut-off voltage	3.65V/Cell（≤14.6V）
Cell and assembly method	IFR26700
Housing material	ABS(black)
Standard charge	0.2C constant current (CC) charge to 14.6Vthen constant voltage (CV) 14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
Standard discharge	Constant current 0.2C，Cut-off voltage 10V
Maximum Charge Current	60A@20℃
Maximum Continuous Discharge Current	150A@20℃
Operation Temperature Range	Charge: 0～45℃
Operation Temperature Range	Discharge: -20～60℃（cell surface temperature≤80℃）	60±25%R.H. 23 ± 5°C recommended
Storage Temperature Range	Less than 1 year : 0～25℃(SOC≥50%)	60±25%R.H. at the shipment state
Storage Temperature Range	Less than 3 months:-5～35℃(SOC≥50%)	60±25%R.H. at the shipment state
Approx. Weight	13.9Kg
Internal resistance	≤10mΩ	1KHz，AC
Dimension	LWH=（333176217mm）±2mm
Terminals	M8 9.7±10%N.M
Fuel gauge	LCD（Fuel gauge）
