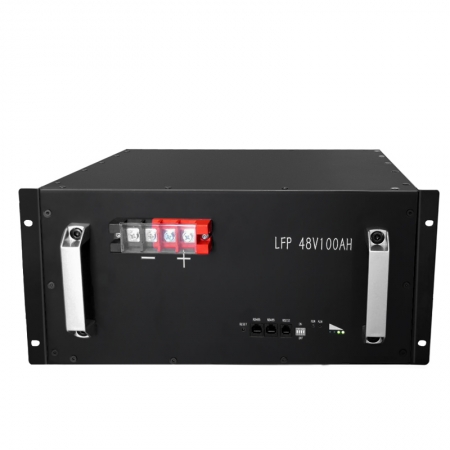

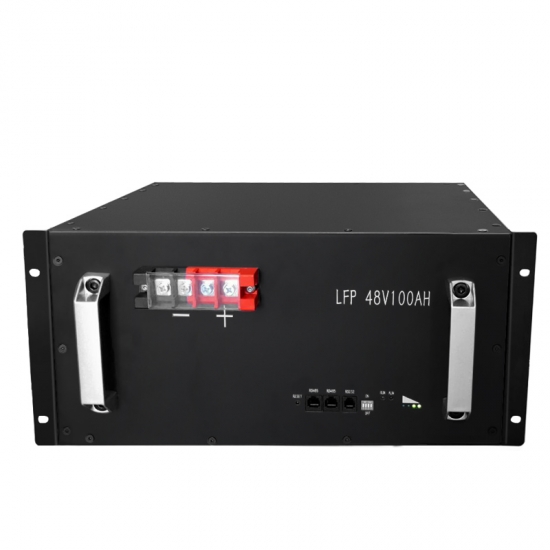

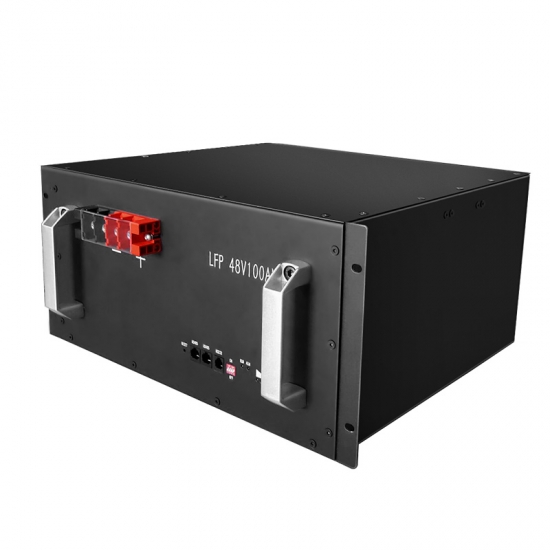

51.2V100Ah Battery Telecom Base Station/ Energy Storage System (Ess) / Solar System Battery / Ups
品牌:
旭派锂能原产地:
China颜色:
Black交付周期:
25-30 Working Days51.2V100Ah lithium iron phosphate (LiFePO4) battery pack for telecom, UPS, solar systems etc.
|
Item |
General parameter |
|
Nominal voltage |
51.2 V |
|
Nominal capacity |
100 Ah |
|
Energy |
5120Wh |
|
Approx. weight: |
54Kg |
|
Dimensions (LxWxH) |
432.2*482.6*222mm |
|
Internal resistance |
35mΩ |
|
Efficiency |
99% |
|
Constant discharge current |
100A |
|
Constant charge current |
100A |
|
Discharge temperature range |
-20~60℃ |
|
Charge temperature range |
0~45℃ |
|
Peak discharge power |
7.68KW@25℃,100ms |
|
Max discharge Power |
5.12KW@25℃ |
|
Communication protocol |
RS232/RS485 |
51.2V100Ah lithium iron phosphate advantage:
1)The battery has small internal resistance, sufficient capacity, stable performance and long cycle life.
2) The cycle life of a single battery cell exceeds 3000 times, and the cycle life of a group is greater than 2000 times; higher than the industry average.

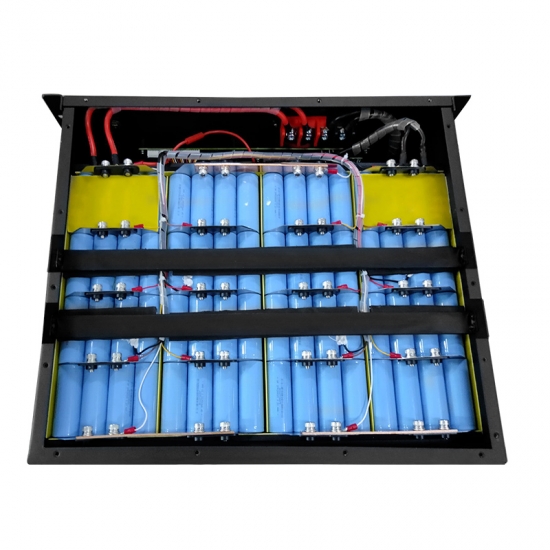

3)The unique built-in battery management system (BMS) of lithium batteries collects and calculates parameters such as voltage, current, temperature and SOC, and then controls the charging and discharging process of the battery to realize the protection of the battery.
4)Parallel function, support up to 16 sections.
5)100% safe, non-toxic, renewable energy and can be recycled more times. We make renewable and sustainable green energy batteries because they are better than any other products (including other green batteries).
6)Can provide customers with OEM, ODM services
7) Product liability insurance by Ping'an
Compatible with 48V DC Inverter
| Inverter Brand | Inverter Type | Communication | Application | Installation |
 |
sunny island 6.0H | Powerwall Battery | ||
 |
Multiplus 48V | CAN | On/off-grid* | Powerwall / Rackmount Battery |
 |
SUN-SG01LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery |
| SUN-SG03LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery | |
 |
SPH3000 - 6000 | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SPF2000 - 5000 | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
 |
GW-BP | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SBP GW-ES | CAN | On/off-grid | Powerwall / Rackmount Battery | |
| EM | CAN | On/off-grid | Powerwall / Rackmount Battery | |
 |
Xtender 48V serie | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
Infinisolar series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery |
| Axpert series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
 |
RHI series | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
LXP Hybrid 6K/8K | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
BD series | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
SMT-5K-TL-LV | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
Conext XW Pro series | CAN | Debugging in progress | |
 |
HYD series | RS485(115200)/CAN | Debugging in progress | |
 |
Any-grid PSW-H-5kW-230/48V | RS485(9600) | Debugging in progress | |
 |
SH5K | CAN | Debugging in progress | |
 |
BK-BP Series | CAN | Debugging in progress |
