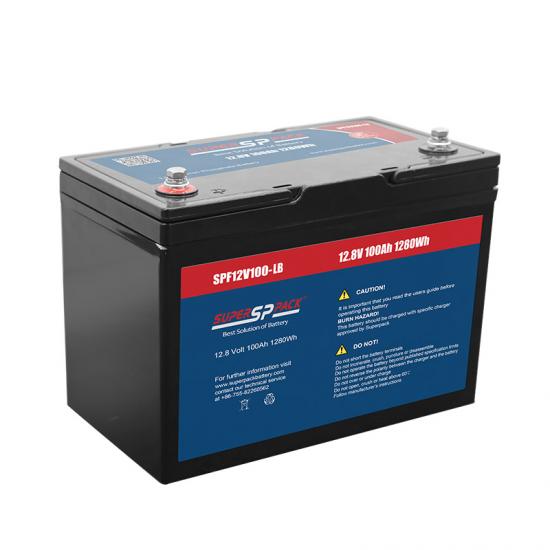

Mobility Scooter Batteries 12V100Ah Lithium ion Battery Pack

Deep Cycle Discharge LiFePO4Batteries Advantages:

*  are five main types of hot products have been widely used in varieties of application field.

-- ST: Stands for standard type -- BL: Stands for with Bluetooth communication type

-- SM: Stands for smart battery type with SMBus, RS485, RS232, CANBus and Ethernet, Etc.

-- LT: Stands for low temperature type can be charged below zero degrees

-- LB: Stands for low temperature type with Bluetooth communication

 * Adopt high quality LiFePO4 cylindrical cells solutions * Built-in BMS, It has a completed protection solution with over charge, over discharge, multi level of over current (charge/discharge) and short circuit, over temperature (charge/discharge), low temperature (charge/discharge), cells balance, and the protection threshold can be adjusted by the customization.

* For “LT and LB” types, we used a reliable heating film to heat up battery temperature up to 5 degrees around 1hour and then the battery turn on charging MOS/Relay to charge if the environment temperature below zero degrees

* Lightweight, 50~60% less weight than lead acid equivalent

* Long

* Fast charge within 3 hours

* Wide operating temperature range from -25℃ to 60℃ (Can be adjusted)

* Constant power available throughout discharge, as well as constant voltage, mean voltage would not decline like lead acid

* Low self-discharge, less than 3% per month

* High safety

* Green new energy, ECO friendly, up to 10X longer than lead acid equivalent

* Deep cycle discharge, up to 98% discharge efficiency at 1C, 120% duration time more than lead acid equivalent.

* Fast charge within 3 hours

* Wide operating temperature range from -25℃ to 60℃ (Can be adjusted)

* Constant power available throughout discharge, as well as constant voltage, mean voltage would not decline like lead acid

* Low self-discharge, less than 3% per month

* High safety

* Green new energy, ECO friendly

Application

* Lead-Acid Batteries Replacement

 * Recreational Vehicle

* Golf Carts, Golf Trolleys, Golf Buggy

* E-Mover

* Industrial Vacuum, Floor Scrubber

* AGV, Forklift and Low Speed Vehicle

 * Robot

* E-scooter

* UPS

* Security

* Medical Equipment

 * Emergency and Exit Light

* Solar Light and Landscape

* Marine, Fishing Boat

* Solar Pump

* Solar Tracker

* Remote Monitor Systems

 * Telecommunication Systems

* Solar Energy Storage Systems - On/off grid systems

*Outdoor Entertainment power supply Precautions

 * Constant current (CC), then constant voltage (CV) charging is recommended

* Max. Charge current do not be higher than the parameter which has been specified in specification.

 * Storage -- State of charge 30~50% -- Temperature -5 to 35℃,less than 3monthst room temperature -- Relative Humidity 45~85% -- We recommend to recharge batteries 1time every 3 months

 * Operating temperature range -- Charge: 0~45℃ -- Discharge: -20~60℃

* For the battery packs in series or parallels, the battery packs must be in the same status, such as the same SoC, voltage, current, environment temperature etc. We recommend to single charge to maintenance every 3 months to make sure they are in balance. Beside, the max. charge/discharge current do not be higher than the parameter which has been specified in specification

* Recommended float charge voltage is less than 3.45*N (3.45V/cell) at 25℃

Parameter
