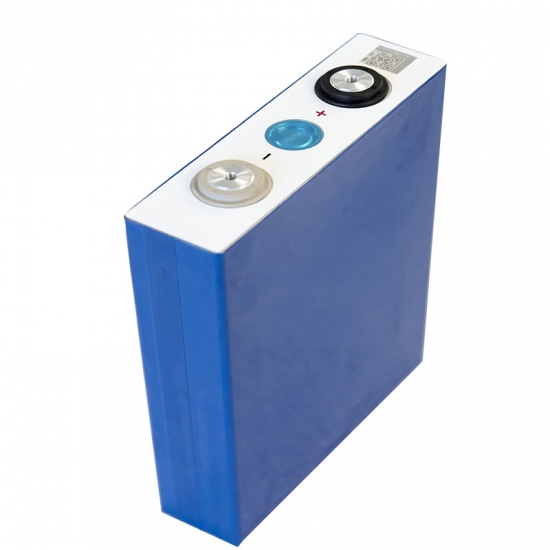

3.2V90Ah Prismatic LiFePO4 Cell
| Item | Specification | Remarks |
| Nominal Capacity | 105Ah | @0.2C discharge , 2.5V cut off |
| Typical Capacity | 104Ah | @0.2C discharge , 2.5V cut off |
| Minimum Energy | 332Wh | @0.2C discharge , 2.5V cut off |
| Nominal Voltage | 3.2V | |
| Charge Voltage | 3.65±0.02V | |
| Charge Mode | CC/CV | |
| Charge | Standard charge : 0.2C | Charge at 0.2C to 3.65V, then 3.65V (constant voltage) until the charge current is less than 0.02C cut off |
| Rapid charge : 1.0C | Charge at 1C charge to 3.65V, then 3.65V (constant voltage) until the charge current is less than 0.02C, cut off. | |
| Discharge | Standard Discharge : 0.2C | Constant Current 0.2C, cut-off Voltage 2.5V |
| Rapid Discharge : 1.0C | Constant Current 1C, cut-off Voltage 2.5V | |
| Max. Charge Current | 1.0C | 1.0C(45℃≥T≥ 10℃) ; 0.2C(10℃≥T≥0℃) |
| Cont. Discharge Current | 2.0C to 2.5V | 0.5C(50℃≥ T≥ 45℃) ; 2.0C(45℃≥T≥5℃) ; 0.2C(5℃≥T≥-20℃) |
| Max. Discharge Current | 3.0C | 3.0C(45℃≥T≥5℃) |
| Inner Resistance | ≤ 2.0mΩ | 1kHz AC Method |
| Weight (Approx.) | 1980±30g | |
| Dimensions | Thickness(max): 36mm；Width(max): 150mm ；Length(max): 200mm | |
| Cycle Life | ≤ 2000 times | @0.1C discharge, 100% DOD |
| Operating Temperature | Charge: 0 ~ 45℃ | |
| Discharge : -20 ~60℃ | ||
| Storage Temperature | 1 year : 10~20℃ | At 50% SOC |
| 3 months : -0~25℃ | ||
| 1 month : -20~30℃ | ||
| Storage Humidity | 5%≤ RH≤ 85% | |
