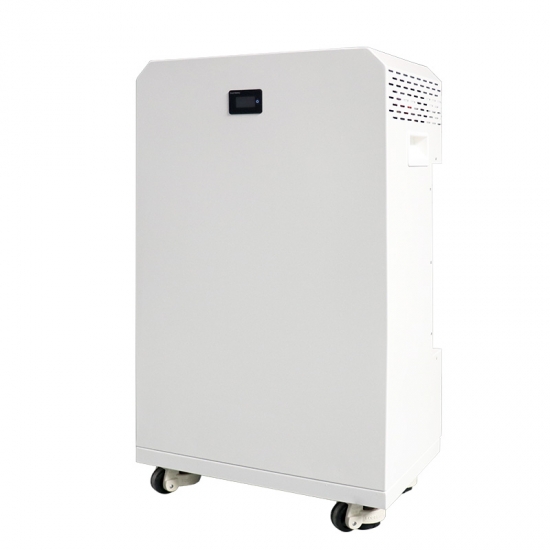

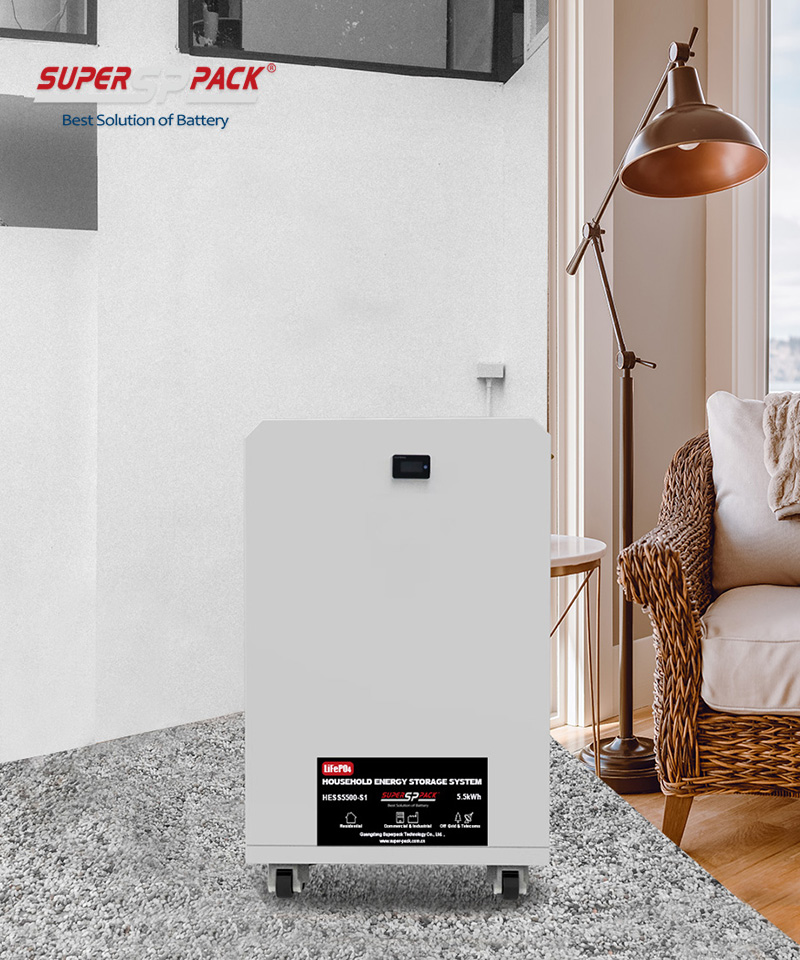

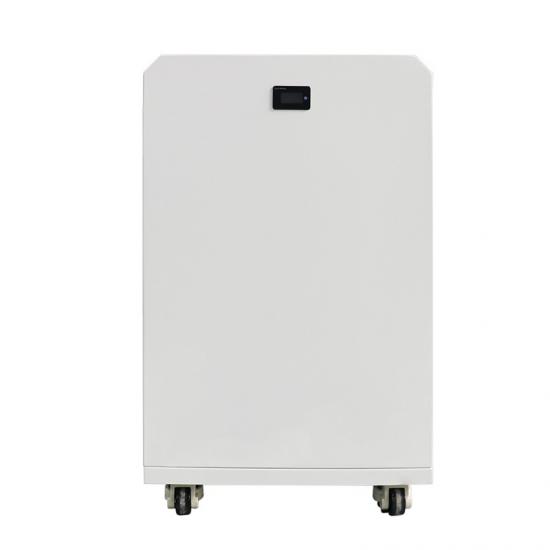

SP-ESS-1.5K-5K-E1 Wheeled home energy storage system for easy mobility, a flexible modular design,Scalable from 5 to 20 KWh
品牌:
旭派锂能产品型号:
SP-ESS-1.5K-5K-E1原产地:
China颜色:
white交付周期:
25-30 Working DaysSuperpack offers a complete home energy solution to suit your home conditions and lifestyle. Flexible Investment 5KWh Modular Design,Scalable from 5 to 20 KWh in off-grid scenario, The performance requirements of the market at a competitive investment cost but also save energy, increase productivity, ensure stable electricity supply and reduce energy expenses.
This specification is applied to the 5.5KWH Off-Grid Energy Storage System built in inverter + MPPT charger + Li-ion battery charger + LiFePO4 battery with BMS plus LCD display that manufactured by Superpack.
Main Features
1) 5.5KWH home energy storage system: Household self-use system.
2) Battery pack:
• LiFePO4 battery pack: 25.6V230Ah
• Max. output power: 2.5KW
3) Inverter:
• Single phase pure sine wave inverter
• AC output: 110V/60Hz Or 220V/50Hz
• Rated output Max power: 2000W
4) MPPT charging controller:
• Max. voltage of PV: 100V
• Max. power of PV: 1100W
• Charging method: CC/CV
• Max. charging voltage: 29.2V (adjustable)
• Max. charging current: 40A
5) AC charger:
• AC input: 110V/60Hz OR 220V/50Hz is available)
• Max. output power: 600W
• Charging method: CC/CV
• Max. charging voltage: 29.2V (adjustable)
• Max. charging current: 20A
6) Solar panel
• Single panel: 400W
• System assembling: 1PCS, 400W Or 2PCS, 400W OR 3PCS, 400W
|
Item |
Parameters |
Remark |
|
Battery Pack |
||
|
Chemistry |
Lithium Iron Phosphate (LiFePO4) |
|
|
Cell Brand |
BYD Brand |
|
|
Nominal Capacity |
230AH |
|
|
RatedBatteryVoltage |
25.6V |
|
|
Max. Charging Voltage |
29.2V |
|
|
Standard Charge |
20A constant current (CC) charge to 29.2V,then constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C at 25℃ |
|
|
Max. Charging Current |
66A |
|
|
Standard Discharge |
Constant current 0.2C cut-off voltage 20.0V 25℃ |
|
|
Max. Continuous Discharge Current |
100A |
|
|
Max. Output Power |
2.5KW |
|
|
Charge Cut-off Voltage |
≤30.4V (3.8V/cell) |
|
|
Discharge Cut-off Voltage |
≥ 20.0V (2.5V/cell) |
|
|
Cycle life |
1200cycles standard charge/discharge |
|
|
ChargingTemperatureRange |
≤ 30A at 0~10℃ |
|
|
≤ 66A at 0~50℃ |
||
|
Discharge TemperatureRange |
≤ 20A at -10~0℃ |
|
|
≤ 50A at 0~10℃ |
||
|
≤ 100A at 10~55℃ |
||
|
Relative Humidity |
5~95% |
|
|
Weight |
60kgs |
|
|
Dimensions |
W425.0±3*D160.0±3*H557.0±3mm |
|
|
Storage TemperatureRange |
SOC 30~50% ≤3 months:-5~35℃ |
|
|
Item |
Parameters |
|
|
Inverter |
||
|
Model |
SP-1500W (Single phase pure sine wave) |
|
|
Output Voltage /Frequency |
110Vac/60Hz OR 220V/50Hz |
|
|
Rated Output Power |
1500W |
|
|
Peak Output Power |
3000W |
|
|
DC Input Voltage Range |
19.0~30.0V |
|
|
Efficiency |
≥ 90.0% |
|
|
Power Factor |
95% |
|
|
Working Temperature Range |
-20~60℃ |
|
|
Overload Protection |
Yes |
|
|
Over-temperature Protection |
Yes |
|
|
Noise |
60dB(A) |
|
|
Cooling Method |
Electric Fan |
|
|
Relative Humidity |
≤95% |
|
|
MPPT charging controller |
||
|
Model |
24V40A |
|
|
PV Input Voltage Range |
30~100V |
|
|
Max. PV Input Power |
1100W |
|
|
Max. Charging Voltage |
29.2V |
|
|
Max. Charging Current |
40A |
|
|
Efficiency |
98% |
|
|
Static Self-consumption |
≤10Ma |
|
|
Working Temperature Range |
-20~60℃ |
|
|
Relative Humidity |
≤95% |
|
|
Over Temperature Protection |
Yes |
|
|
Reverse Connection Protection |
Yes |
|
|
Start Charging Voltage |
16V |
|
|
Charging Cut-off |
MPPT turn off charging automatically when fully charged |
|
|
Item |
Parameters |
Remark |
|
Li-ion Battery Charger |
|
|
|
Model |
SP-600W (Li-ion battery charger) |
|
|
AC Input |
110Vac/60Hz (220V/50Hz is available) |
|
|
Charging Method |
CC/CV |
|
|
Max. Output Voltage |
29.2V |
|
|
Constant Charging Current |
20A |
|
|
Max. Output Power |
600W |
|
|
Efficiency |
≥ 90.0% |
|
|
Reverse Connection Protection |
Yes |
|
|
Over-temperature Protection |
Yes |
|
|
Charging Cut-off |
Charging current less than 1A |
|
|
Charger Start Charging Voltage |
16V |
|
|
Cooling Method |
Electric Fan |
|
|
Working Temperature Range |
-20~60℃ |
|
|
Relative Humidity |
≤95% |
|
|
PV Panel |
||
|
Model |
SW400MR |
|
|
Max. Power |
400W (single panel) |
|
|
Max. Power Voltage |
37.62V |
|
|
Max. Power Current |
10.64A |
|
|
Open Circuit Voltage |
45.52V |
|
|
Short Circuit Current |
11.27A |
|
|
Efficiency |
20.12% |
|
|
Working Temperature Range |
-40~85℃ |
|
|
Max. System Voltage |
1000Vdc |
|
|
Max. Series Fuse Rating |
15A |
|
|
Power Tolerance |
±5% |
|
|
STC Condition |
1000W/m2, 1.5AM and 25℃ cell temperature |
|
Item |
Parameters |
Remark |
|
|
The System |
|||
|
Model |
5.5KWH Home Energy Storage System |
|
|
|
Built-in Main Components |
Inverter + MPPT charger + Li-ion battery charger + LiFePO4 battery with Smart BMS plus LCD display |
||
|
Input |
L-ion battery charger for AC input |
29.2V/20A for 12hours (approx) |
|
|
MPPT charger for PV input |
29.2V/40A for 6hours (approx) |
||
|
PV Panel Assembling |
2pcs 400W PV panels connecting in parallel |
Total 800W |
|
|
Output |
2000W single phase pure sine wave |
||
|
110V/60Hz Or 220/50Hz |
|||
|
Efficiency |
90% |
||
|
Power Factor |
0.95 |
||
|
BMS |
Monitoring battery voltage, current, temperature to protect from overcharge, over discharge, over current, short circuit, over heat, under temperature and learning SoC. |
||
|
LCD Display |
Display battery operation status, such as SoC, voltage, current, temperature, or error alarming |
||
|
System Cooling |
Electric Fan (Nature air) |
||
|
Working TemperatureRange |
-0~40℃ in door (is recommended) |
||
|
Relative Humidity |
≤95% |
||
|

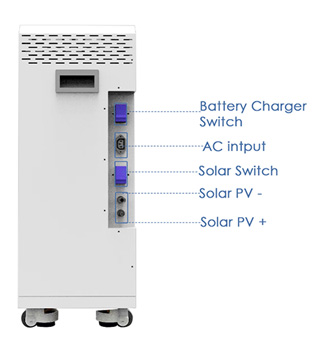

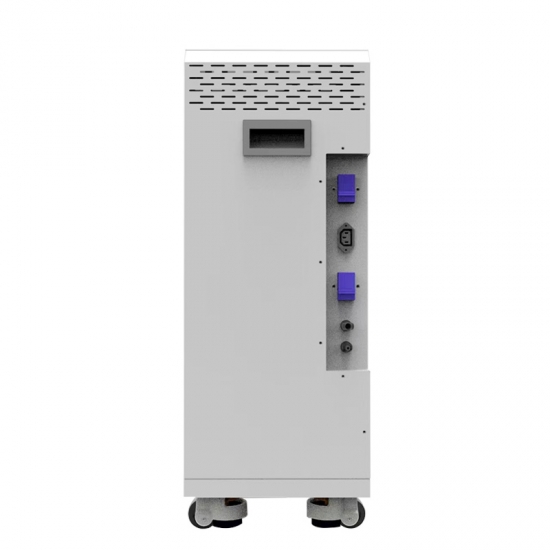

System Connection |
|||
|
PV input + |
Female connector 20A,PV Cable conductor cross-section1.5mm2 |
|
|
|
PV input - |
Male connector 20A, PV Cable conductor cross-section1.5mm2 |
|
|
|
MPPT on/off |
Switch on or off MPPT charging |
||
|
Item |
Parameters |
|
|
The System |
||
|
System Connection |
Can be customized |
|
|

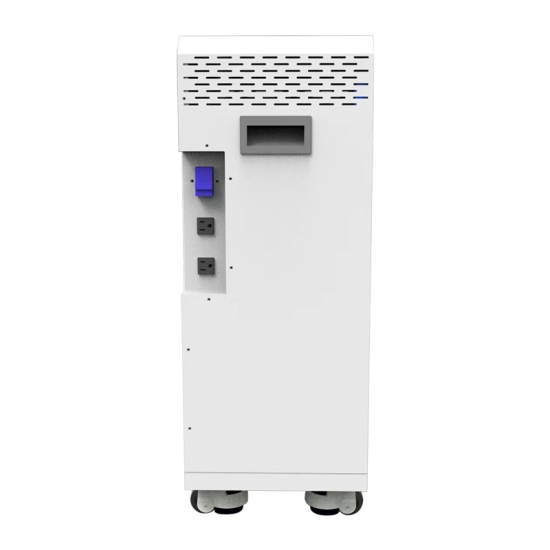

Lithium-ion Battery Charger Connector |
AC Input 110V/60Hz |
|
|
Female Connector |
||
|
Charger ON/OFF |
Switch ON or OFF AC charging |
|
|

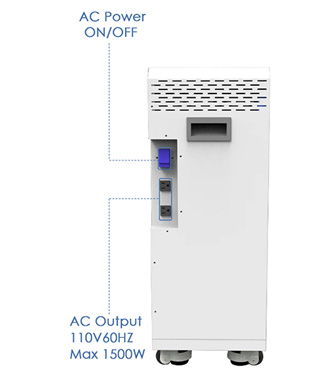

Output |
AC Output 110V/60Hz |
|
|
2*Female Connector |
||
|
Inverter ON/OFF |
Switch ON or OFF AC output |
|
|
Efficiency |
90% |
|
|
Power Factor |
0.95 |
|
|
Overload Protection |
≥105% rated power of inverter |
|
|
Over Temperature Protection |
≥ 70℃ |
|
|
Short circuit protection |
Yes |
|
|
Short circuit protection release |
Remove external load Or Switch OFF |
|
|
Weight (kg) |
85 |
|
|
Dimension |
W500*D300*H790mm |
|
|
Case Material |
Metal sheet |
|
|
Enclosure Protection |
IP20 |
|
|
Certification |
IEC62619, IEC62109, CE61000,UN38.3 |
|
