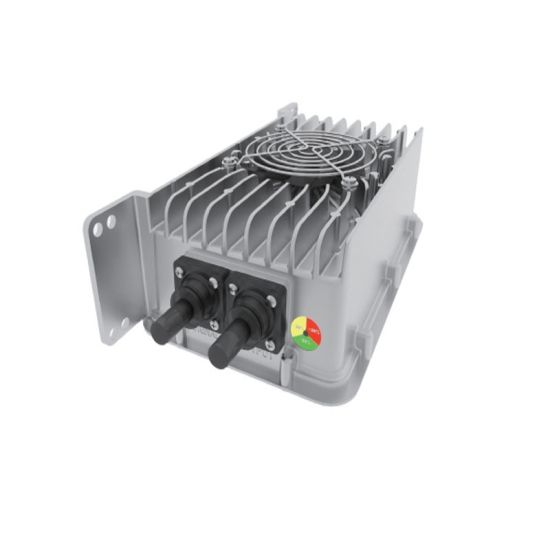

1500W Series On-board Seal Charger

1、Burnout Protection：Temperature of charger exceeds the limitation, the charger will low down the power load.

Temperature of environment exceeds 65 ℃, the charger will stop charging and switch itself to standby mode until
temperature of environment goes down.
2、Protection for Reverse Connection of Batteries:The circuit inside the charger shuts down with batteries when the batteries
are connected reversely and will not damage the charger.
3、NO-load Protection: There is no output when the batteries are not connected.

4、Short Circuit Protection:The circuit inside the charger shuts down with batteries when output is short circuit.

The charger will start charging only after troubleshooting and restart the charger.

5、Automatic shutdown when fully charging:The charger automatically turns off after the battery is fully charged according to the charger's judgment .

Technology Parameters

AC Input Voltage Range	90-264VAC；45-65Hz
AC Input Max Current	13.5A @100VAC； 8.1A @220VAC
Power Factor	≥0.99
Efficiency	≥94.0%
Noise	≤45dB
Protection level	IP67
Net Weight	3.5kg
Operating Temperature	-30℃-65℃
Storage Temperature	-40℃-95℃
